High weather resistance
Artellion has high weather resistance due to the 3-coat 3-bake process (3-time printing + 3-time baking) with fluorine coating. Since the sheet is made of aluminium suitable for outdoor use, it is lightweight and rust-resistant, and you can use it with confidence.
Non-combustible
BS476: Part4 (3mm, certified in Singapore)
ASTM E84 (certified in the US)
NM-2698 (all thicknesses, certified in Japan) EN13501-1 A1Weather resistance
Accelerated weathering test (Fluorine coating)
AAMA 2605 (certified in the US)
Sunshine Weather-O-Meter 10,000 hours: no significant discolouration, tested in Japan)Product specifications
<Standard size>
2.0mm x 1220mm x 3050mm
3.0mm x 1220mm x 3050mm
*If you require a size other than the standard size, please contact us.<Manufacturing capabilities>
Printing width: 650mm~1220mm
Print length: 1550mm~4500mm
Aluminium thickness: 0.6mm ~ 3.0mm<MOQ>
We can produce the amount required for each project. (We will give you a quote for any quantity you request.)Product cross-sectional structure

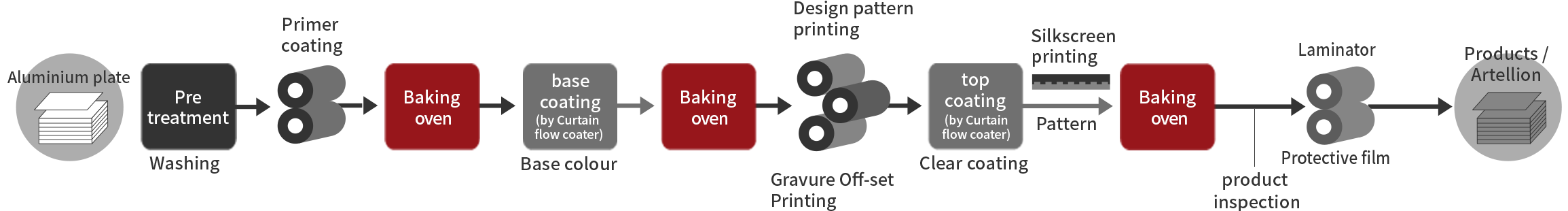

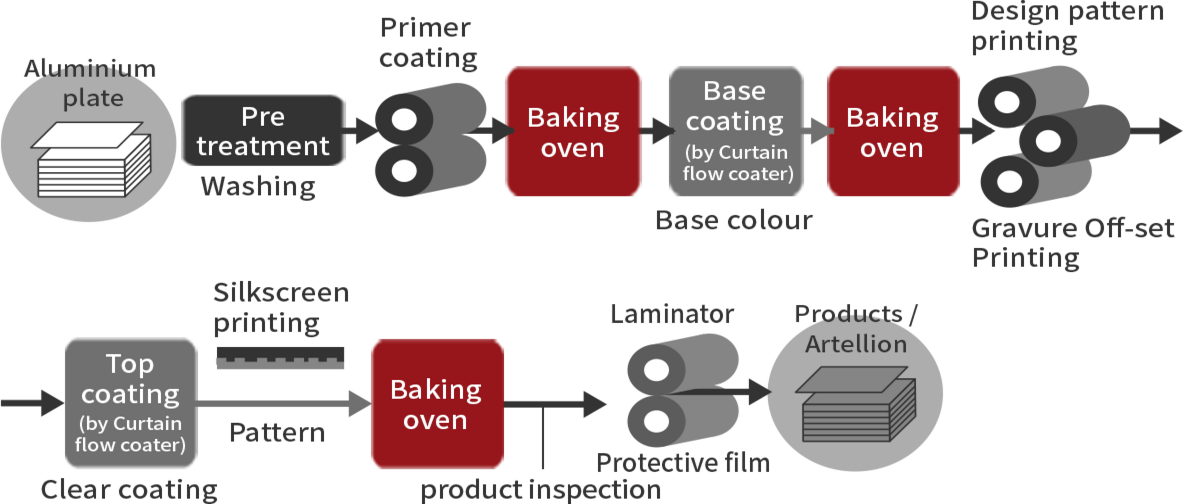

Manufacturing process
Artellion is made with a direct printing and coating process on aluminium sheet. The printing method, called the "3-coat, 3-bake method," involves printing three times and baking three times. After applying a primer to the aluminium sheet, the base coat is applied, which will be the base for the pattern colour. Then, a pattern such as wood grain or stone grain is printed, and a clear coat is applied on top. As the product is baked in an oven after each printing process, Artellion's mechanical stability and aesthetics are ensured.
Easy maintenance
Artellion is available even for outdoors with the fluorine coating, which has a proven track record of use for over 20 years. Since it is resistant to colour fading and discolouration, maintenance costs such as repainting and replacement can be reduced.
Artellion red granite finish
Real red granite
Completed in 1999. Over 20 years of experience
The first project of Artellion is the Shanghai Mando Building, Shanghai.
The exterior is made of real red granite from the 1st to 4th floors, and Artellion was used from the 5th floor onwards. It is lightweight and reproduces the unique texture of red granite.
Weather resistance that allows Artellion to be used in urban infrastructure such as stations
Takanawa Gateway Station: Natural texture and weather resistance
Excerpt from an interview with Kengo Kuma (opens in a new window)
In the case of Takanawa Gateway, there are parts that use real wood and parts that use Artellion, but in fact it is almost impossible to tell the difference if you see it.
Stations need to be more weather-resistant than other buildings, and if something is damaged, trains may have to be stopped to replace it, so the weather resistance that Artellion provides is extremely important and necessary for such delicate buildings.
I think that even things like train stations, which in a sense are symbols of industrialization, will need to have the texture of wood in the future.
